INSTANT Product Family
The price of the product includes the operating cost of the SIM card installed in the device.
The INSTANT product family currently consists of 3 devices, each sold as a package that includes a cloud server, an international SIM card, and data service for a single, upfront price. The price covers 5 years of operational costs. One of the key advantages of INSTANT products is that they require no additional paperwork, administration, or service setup. Installation is quick and easy, and thanks to the international roaming SIM card, the devices automatically connect to the closest, best-performing GSM network for secure data communication.

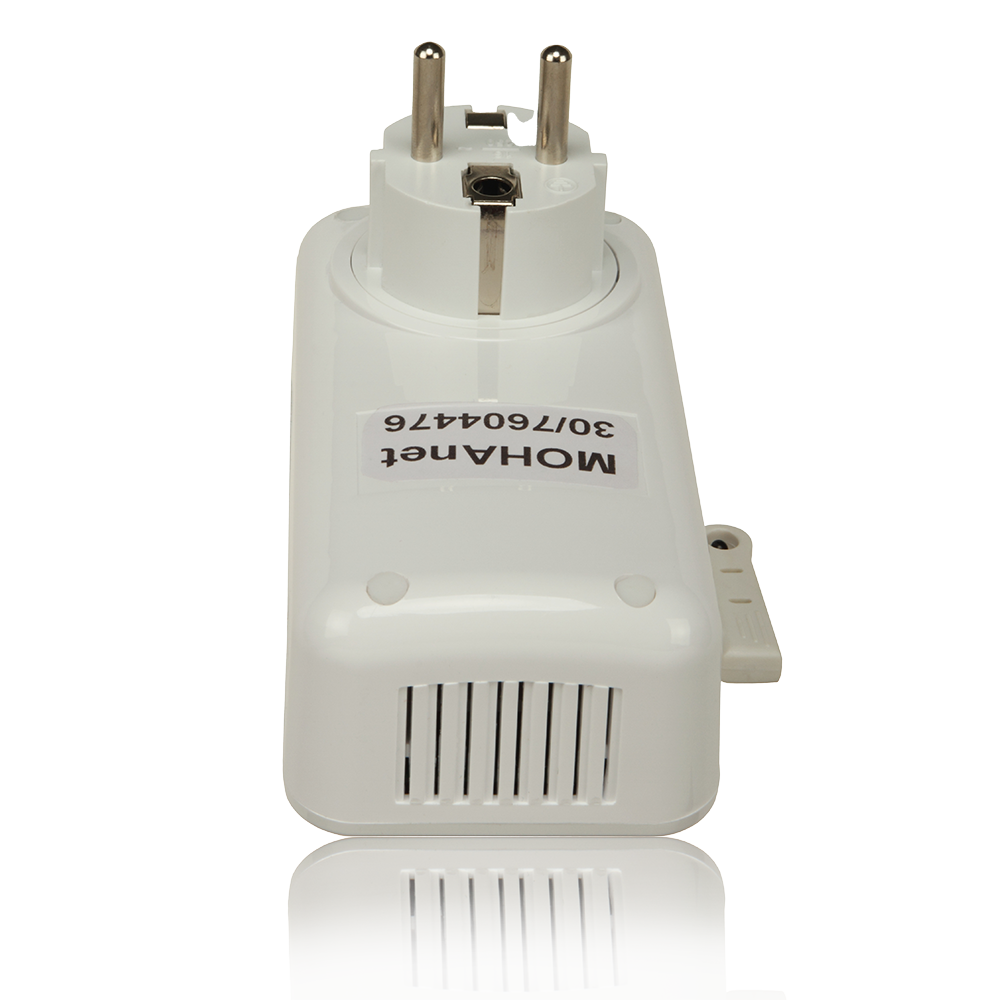

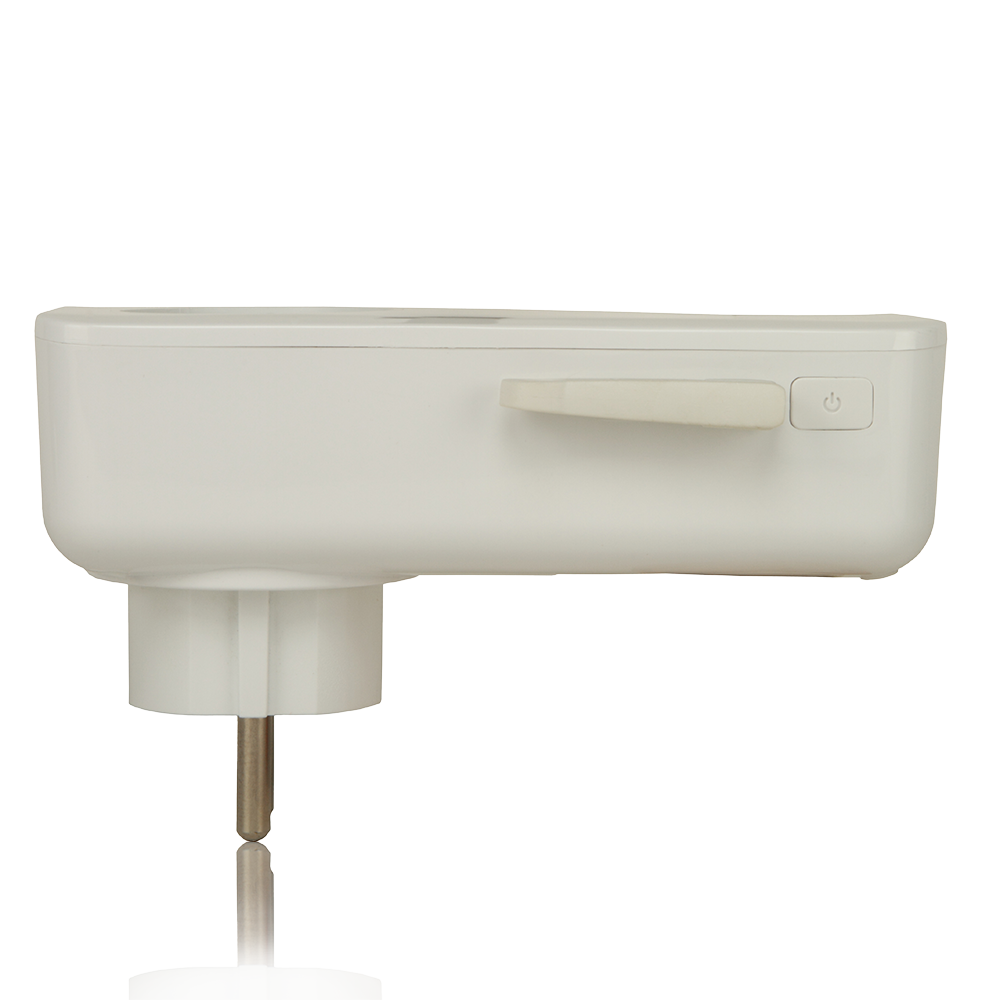

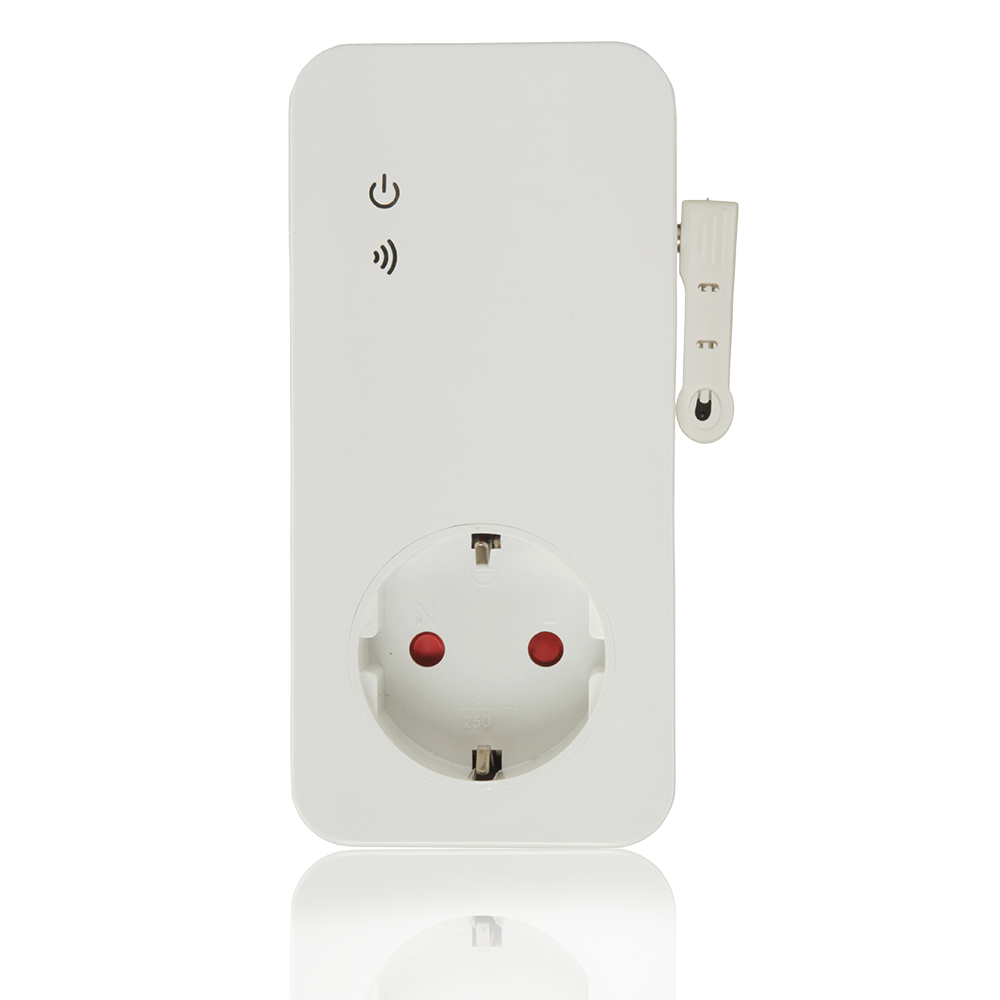

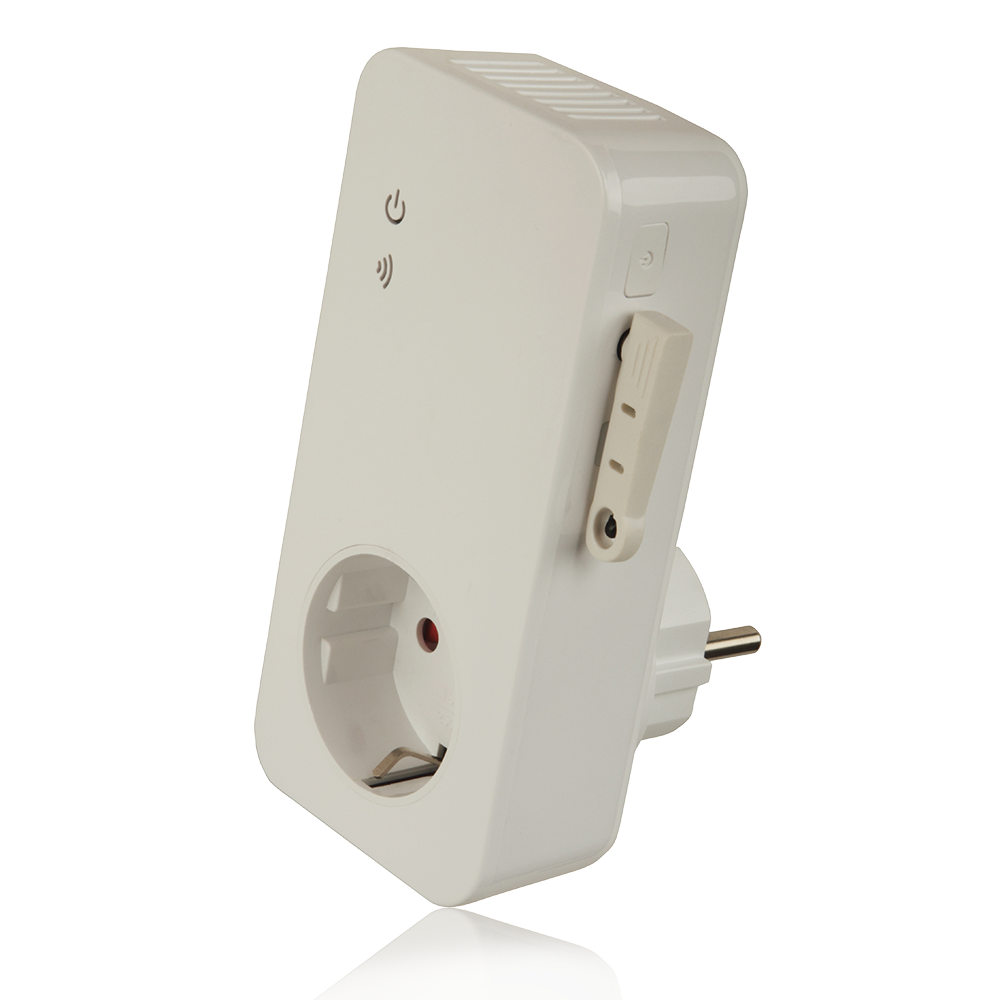

GSM SOCKET
Remote-Controlled Power Outlet
The GSM SOCKET is a remotely controlled relay that plugs into an electrical outlet. Users can control the power of a device connected to the socket via a dedicated mobile application, using the SMART CLOUD cloud server. Unlike Wi-Fi sockets, which require a router and a separate internet subscription, the INSTANT GSM socket comes with a built-in SIM card, making it ready for immediate use upon purchase. It also comes with an external thermometer, allowing it to function as a thermostat. In this mode, the socket controls the power to the connected heating unit based on predefined high and low temperature thresholds. Beyond manual and temperature-based control, it can also be scheduled for timed remote control, with calendar integration.
The price of the device includes 5 years of operational costs, which can be extended for another 5 years upon expiration!

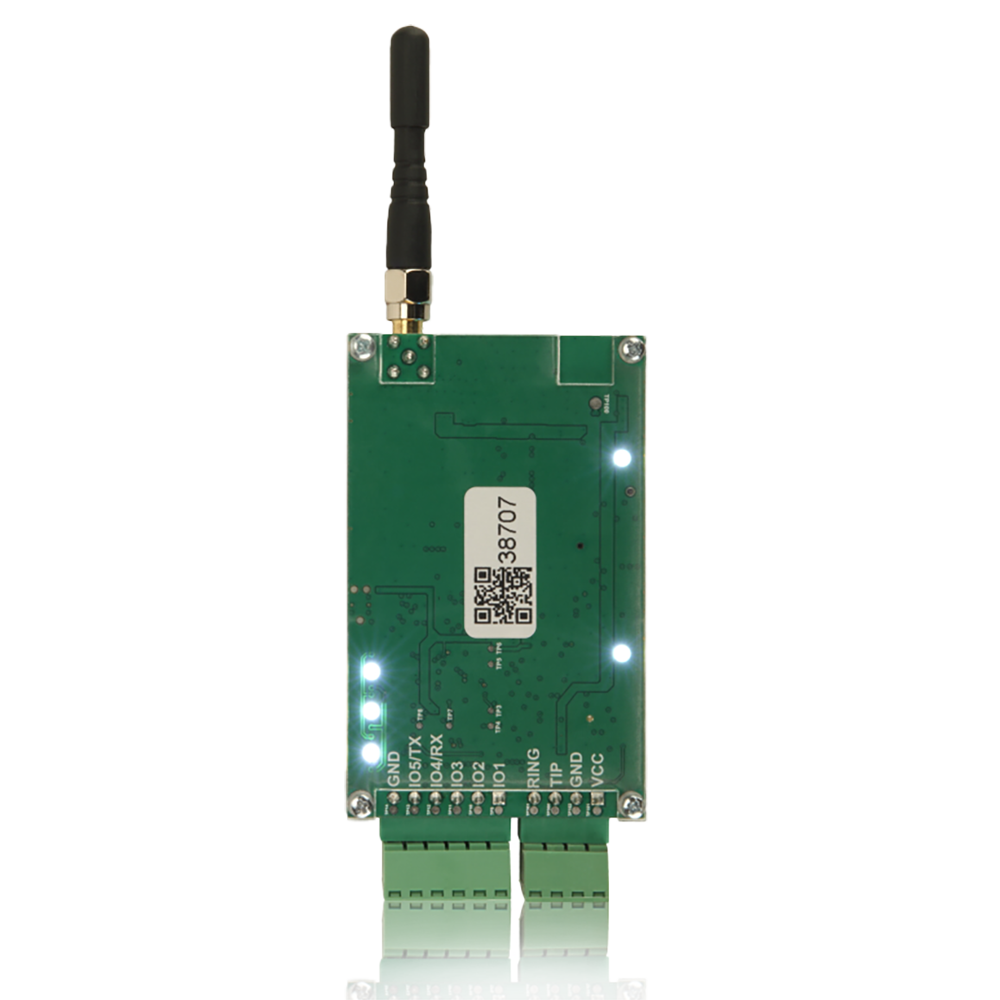

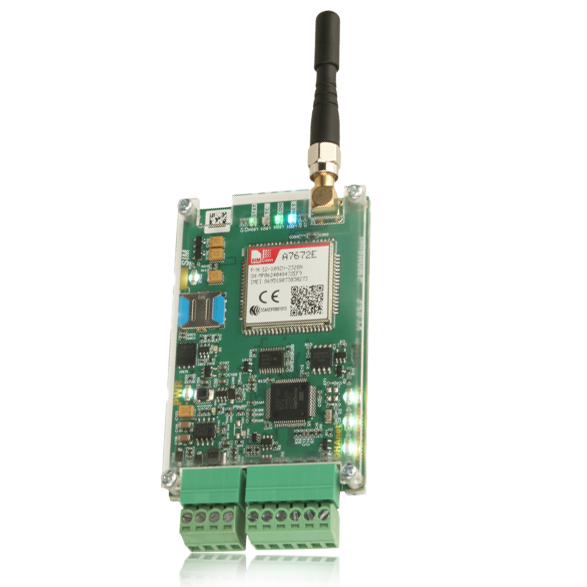

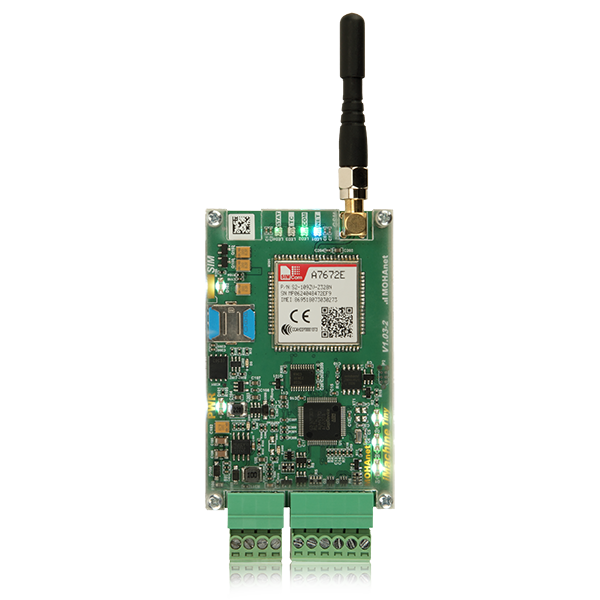

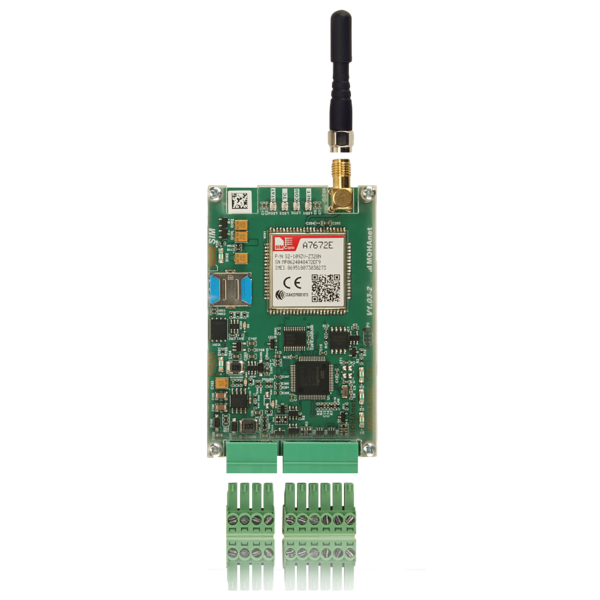

ALARM
Alarm Transmitter
This device is developed to transmit signals/event notifications from traditional alarm
systems with standard Contact ID-compatible telephone line interface. Besides this
functionality the remote control of alarm systems can also be realized by connecting
the alarm system control panel and the Instant Alarm device. The alarm control panel
must have a free zone input for that functionality that serves as a key switch, allowing the user to arm or disarm the assigned partition remotely via the MONITORINBOOK HOME mobile application.
The price of the device includes 5 years of operational costs, which can be extended for another 5 years upon expiration!

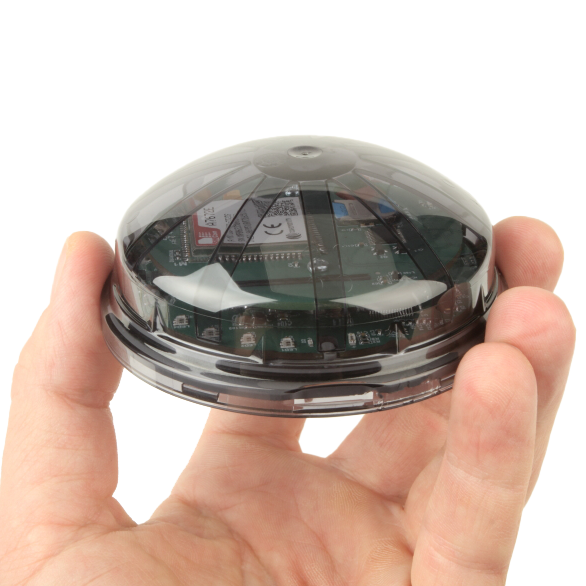

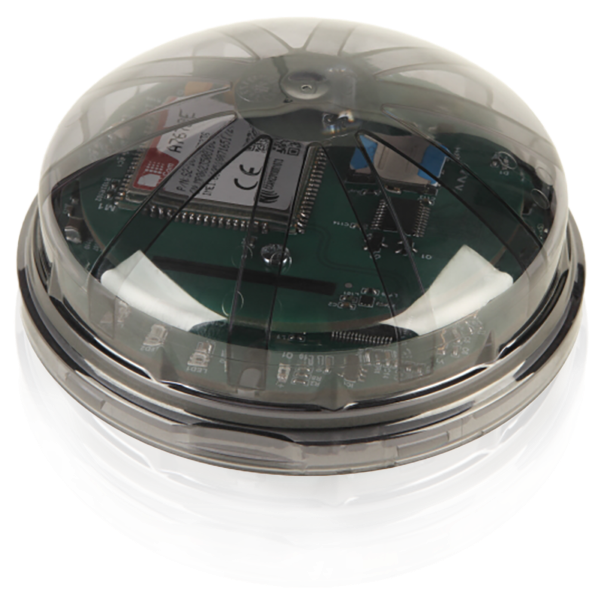

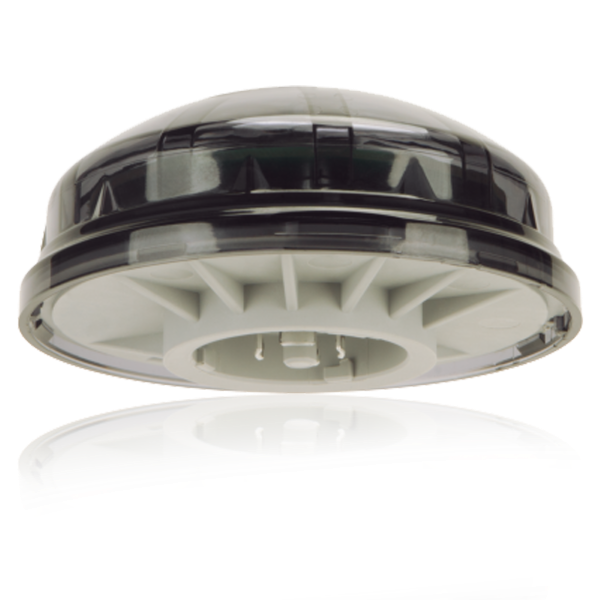

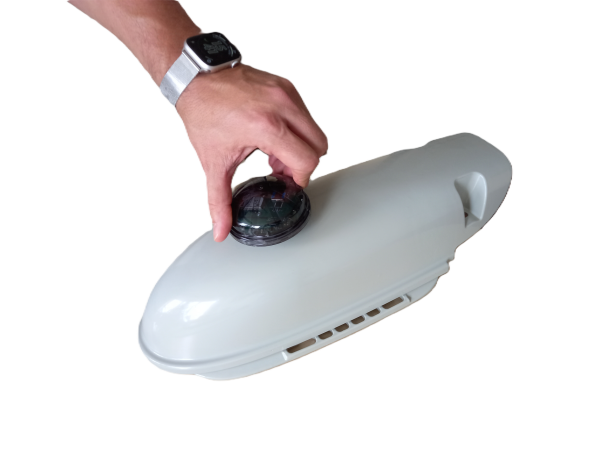

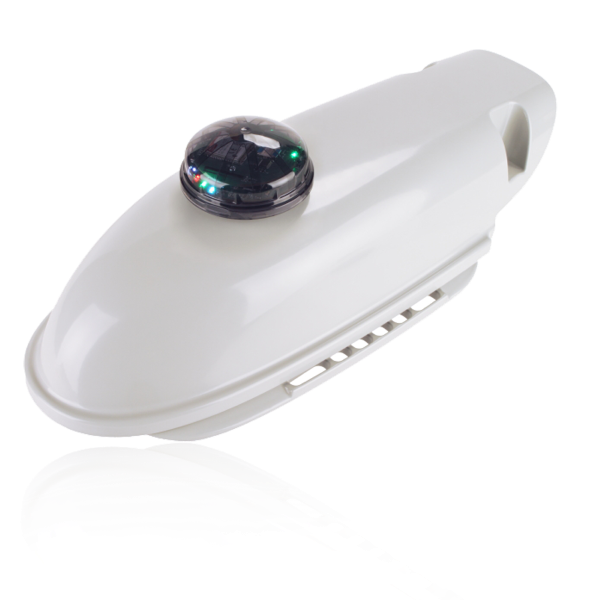

INSTANT LIGHTLOGIC
Outdoor Lighting Controller
Entrust the remote control of streetlights to the INSTANT LIGHTLOGIC outdoor lighting controller. Its standard Zhaga connector ensures universal luminaire compatibility, along with quick and tool-free installation.
Technical Specifications
Technical characteristics | GSM SOCKET | ALARM | Lightlogic |
---|---|---|---|
Supply voltage | 100-240V AC | 12-28 V DC | 12-24 V DC |
Current consumption | - | Quiescent: 50mA (12V DC) Maximum: 250mA (12V DC) |
Quiescent: 25mA (24V DC) Maximum: 120mA (24V DC) |
Frequency band | 900/1800 MHz | 900/1800 Mhz LTE B1/B3/B5/B7/B8/B20 |
|
Size | 125x60x55 mm | 95x50x10 mm | 83x83x45 mm |
Operating temperature | from -20 to +50 °C | ||
Storage temperature | From -30 to +85 °C | ||
Event memory | - | 1024 messages with time stamp | - |
Operating status display | 2 RGB LEDs | 4 RGB LEDs | 4 RGB LEDs |
GSM Communication | GSM 900/1800 (2G) | LTE (4G) | LTE (4G) |
Number of GSM modems | 1 | ||
Total number of inputs and outputs | - | 6 | - |
ContactID interface | - | 1 | - |
General purpose input | - | 1 | - |
General purpose programmable input or output | - | 2 | - |
General purpose programmable input and OC output | - | 2 | - |
Voice communication | - | ||
Basic accessory | thermometer | Antenna with magnetic base | - |
Optional accessory | - | ||
Sign of life | - | A parameter that can be modified between 1 minute and 1 hour | |
Number of zones | - | ||
Number of partitions | - | ||
Number of RFID/NFC handling units | - | ||
Number of users | - | ||
SIM card | Built-in international | ||
Operation (SIM + cloud) | 5 years | 5 or 10 years | |
Maximum performance | 1W | - | |
Maximum switchable power | 1000W | - | |
Guarantee | 2 years |
