iMACHINE TINY Product Family
Two applications in one device
The iMACHINE TINY product family supports two device configurations. All members of this family share the same printed circuit board, but they are differentiated by the type and number of installed components, as well as the embedded software running on each device.ALARM

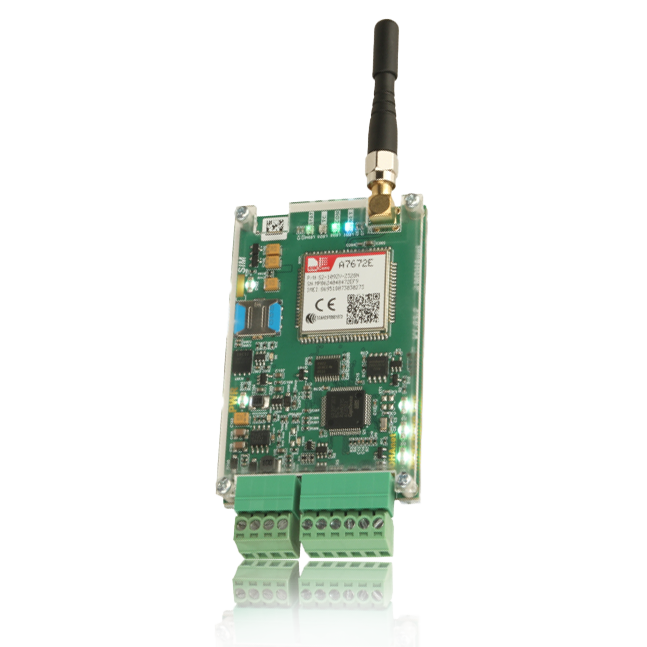

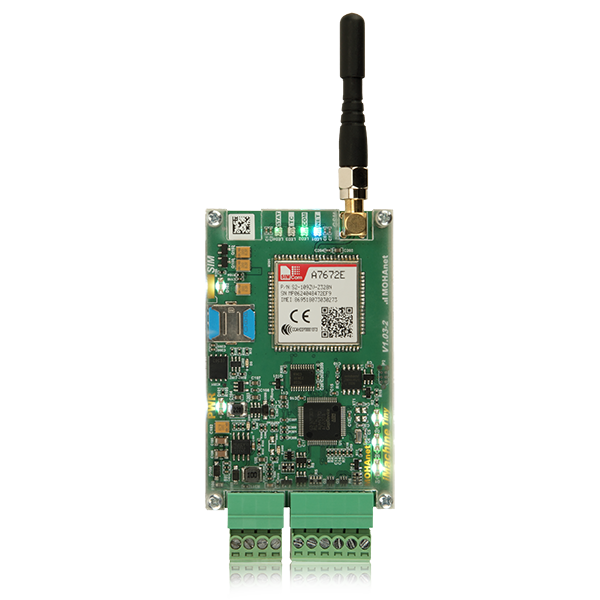

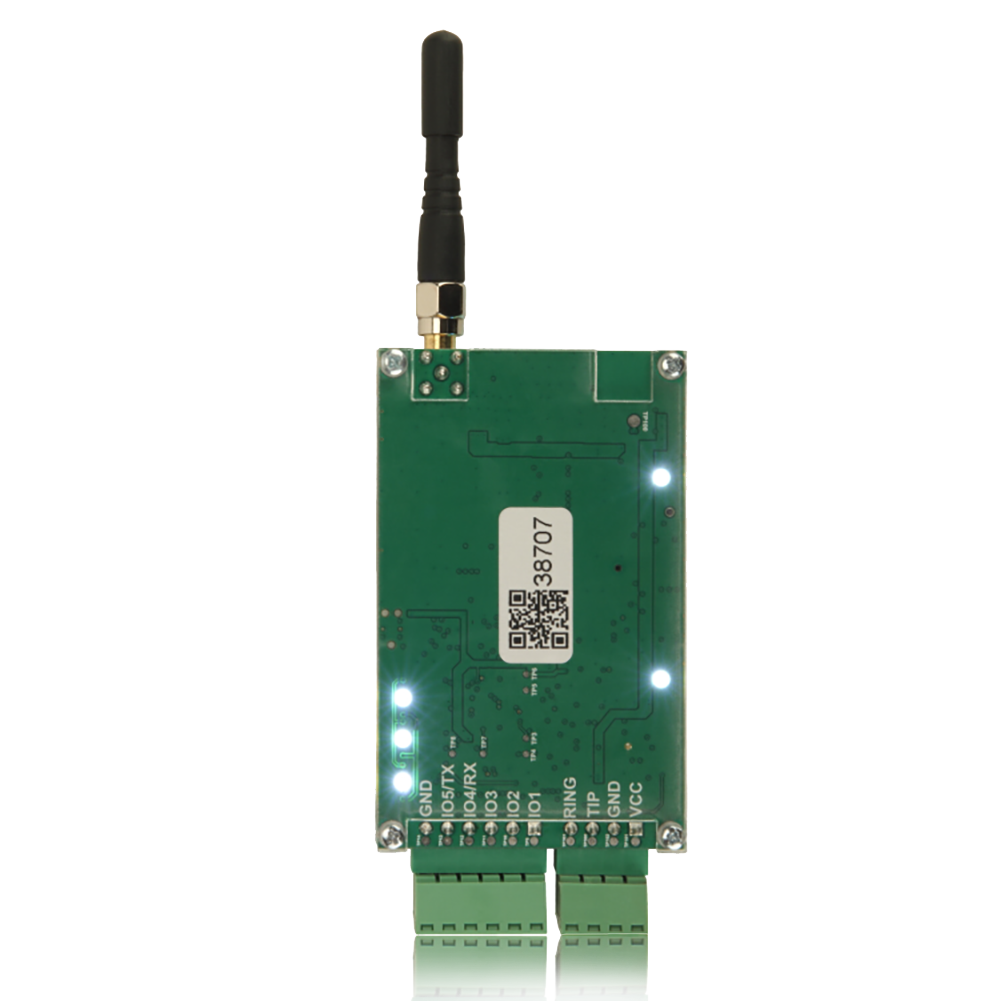

Alarm Transmitter
This device is developed to transmit signals/event notifications from traditional alarm
systems with standard Contact ID-compatible telephone line interface. Besides this
functionality the remote control of alarm systems can also be realized by connecting
the alarm system control panel and the Instant Alarm device. The alarm control panel
must have a free zone input for that functionality that serves as a key switch, allowing the user to arm or disarm the assigned partition remotely via the MONITORINBOOK HOME mobile application.
IOT

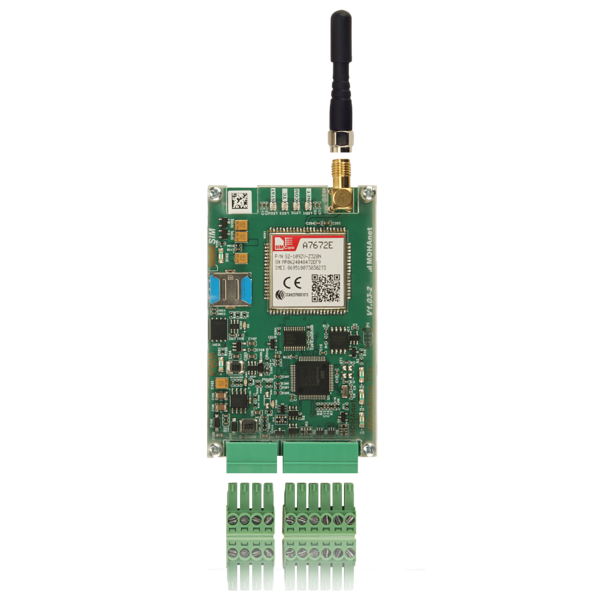

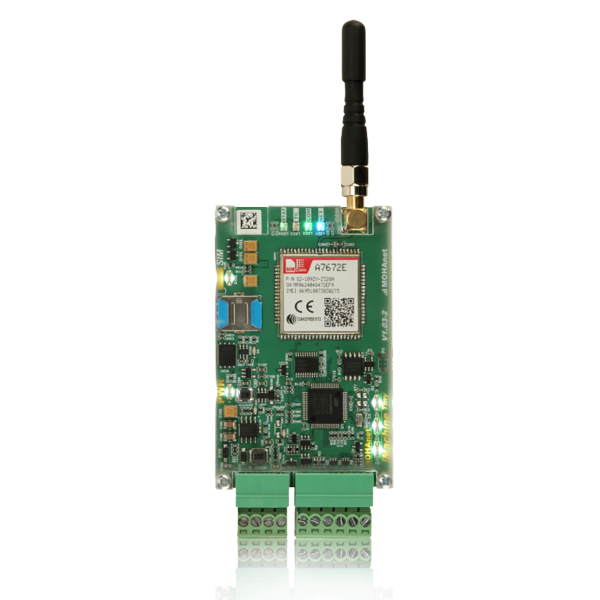

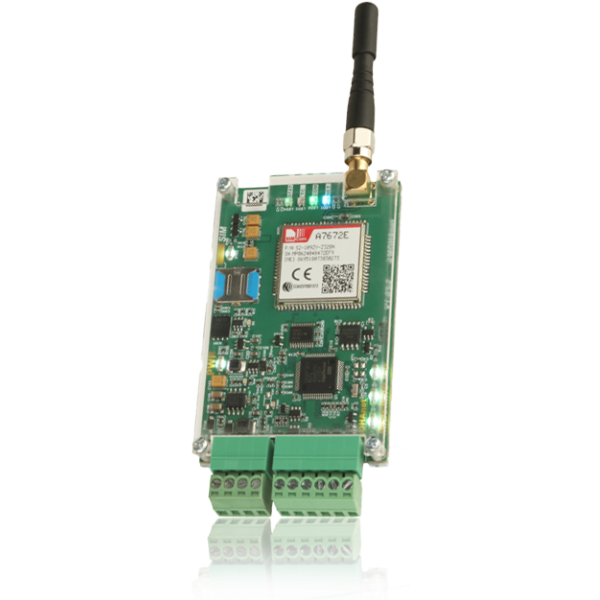

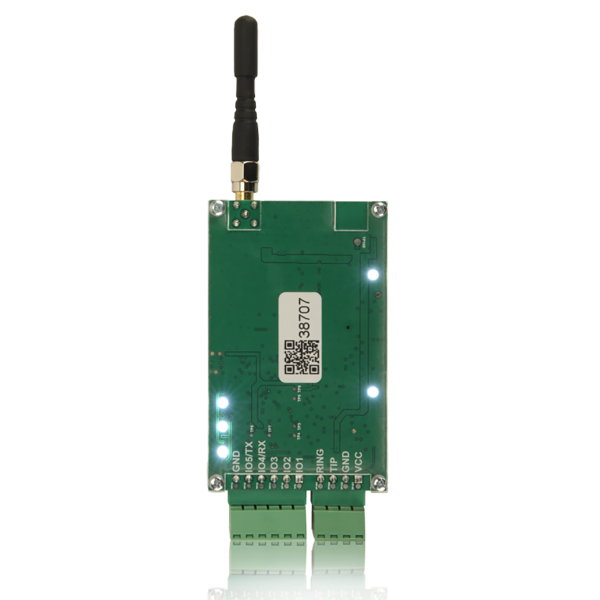

Telemetry Transmitter
The device connects various wired IoT sensors (e.g., temperature, humidity, pulse counters) and Wiegand-based RFID readers.
The former functions as a gateway for sensor data, while the latter serves as an access control terminal.
Technical Specifications
| Technical characteristics | ALARM | IOT |
|---|---|---|
| Supply voltage | 12-28 V DC | |
| Current consumption | Quiescent: 50 mA (12V DC) Maximum: 250 mA (12V DC) |
|
| Frequency band | 900/1800 MHz | |
| Size | 95x50x10 mm | |
| Operating temperature | from -20 to +50 °C | |
| Storage temperature | from -30 to +85 °C | |
| Event memory | 1024 messages with time stamp | |
| Operating status display | 4 RGB LEDs | |
| Communication | LTE (4G) | |
| Number of GSM modems | 1 | 1 |
| Total number of inputs and outputs | 6 | 1 |
| Contact ID interface | 1 | - |
| General purpose programmable input | 1 | 2 |
| General purpose programmable input and output (Open Collector) | 2 | 1 |
| General purpose programmable input and output (Open Collector or RS-232 TTL) | 2 | 1 |
| Basic accessory | Antenna with magnetic base | - |
| Guarantee | 2 years | |
