TEMPERATURE MONITORING

RELIABLE TEMPERATURE MEASUREMENT
TEMPERATURE MONITORING

IS KEEPING THE TEMPERATURE CONSTANT
IMPORTANT TO YOU?

Continuous monitoring of the temperature is vital in cold stores, foil tents, wine cellars, server rooms, as well as public institutions, office buildings or industrial objects.

The The MOHAnet ThermoWatch temperature monitoring system not only provides continuous monitoring, but also enables immediate intervention.

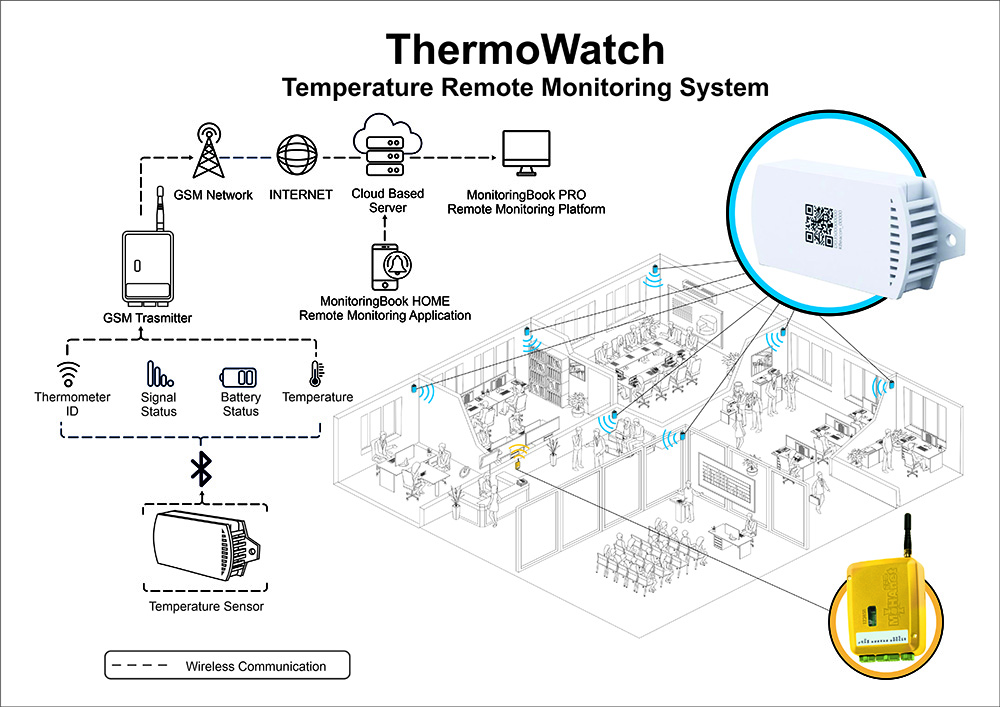

HOW MOHANET
TEMPERATURE MONITORING WORKS

If the value taken by one of the thermometers is too high or too low, the GSM device sends an alarm to the dispatch center contracted for operation. Thay take action immediately, i.e. the designated personnel are verbally informed, who, upon arriving

at the scene, quickly eliminate the factor that triggered the alarm (e.g. they close a window that was left open). This is called notification dispatcher service.

In the case of automated notification, there is no need for a dispatch center, because the designated personnel are informed in real time via web software and a mobile application. This is called application service.

Of course, a combination of these services can also be used.

Operating data about past events can be extracted from both the mobile application and the web software for a day, a week, or even several months.

HOW MOHANET<br/>TEMPERATURE MONITORING WORKS

TECHNICAL CHARACTERISTICS
OF THE THERMOMETER SENSOR

Outer cover ABS
Colour White
Size 94mm*38mm*18mm
Weight 42g
Battery 3.6V 2600mAh
ER14505 Lithium battery
Battery life 5 years (based on 1s transmission interval and 0 dBm TX power)
Water resistance IP66
OTA yes
Button yes
Sensor Temperature and humidity sensor:
+/-0.3℃, -40℃~70℃
Rechargable no
Chipset nRF528XX seria
Tx Power -40 ~ 4dBm
Bluetooth communication BLE 5.0
Wireless frequency band 2.4GHz
Range* BLE4.0/BLE5.0 ~ 80m (in open space)
*The range depends on the physical environment and the characteristics of the building
Energy source ER14505 lithium battery
Operating temperature -40℃~+70℃
Storage temperature 10℃~+25℃,≤65%RH

WHERE CAN THE MOHANET
TEMPERATURE MONITORING SYSTEM BE USED?

Information Technology
Information Technology

Keeping the technological temperature at the same level is a fundamental condition for the smooth operation of server centers, where the daily operation of devices generates a lot of extra heat.

Healthcare
Healthcare

Keeping the temperature at the same level is vital for the storage of blood products and vaccines..

Food industry
Food industry

It can also be used for the storage of food industry raw materials and ready-made products (meat and dairy products, cakes, frozen goods, etc.) required by the HACCP regulation to prevent their deterioration.

Production
Production

Keeping temperature values ​​at the same level is also important in agriculture or animal husbandry, for example in case of mushroom and wine cellars, as well as indoor poultry farms.

Property management
Property management

Preventing heat loss is also vital in public buildings, schools and many other objects where the health of the occupants is protected by the system.

Agriculture
Agriculture

Foil-tent systems are well known in agriculture. The system must monitor not only temperature, but also humidity.

HOW MOHANET
TEMPERATURE MONITORING WORKS?

The MOHAnet temperature monitoring system measures the temperature continuously, and in the event of a problem, it automatically and immediately provides information.

If the temperature is too high or too low despite the measures taken, the GSM device sends a notification to the operator. This is called a notification dispatch service.
Through the application, the system informs you not only about the change in temperature, but also about what was done to restore the original state. (This includes turning on the heating and ventilation fan, opening the windows, and turning on the heating system when it cools down.)
The automated notification takes place in real time via a mobile application.
The necessary operating data can be extracted from both the mobile application and the web software for a day, a week, or even several months.

AWAILABLE SYSTEM CONSTRUCTION OPTIONS

We offer our MOHAnet ThermoWatch temperature monitoring system in packages with 4, 8 and 16 thermometers with installation. It is also possible to create packages with a number of thermometers of choice. For this we provide individual offers. Before ordering, a preliminary field survey is recommended on-site, where we determine with device based examination what kind of specifications the building has and evaluate the distance between the individual rooms.

In case the range of the Bluetooth thermometers exceeds 80 meters or the conditions of the building do not allow stable wireless communication between the Gateway and the thermometers, it is necessary to insert Bluetooth Repeaters.

Those who chose us

Contact us!

Are you interested in our MOHAnet temperature monitoring service? Do you have questions about the operation of the service or the devices? Would you like a custom made offer?

Enter your contact information so that our colleague can contact you by phone within 2 working days to make an appointment. During the personal consultation, you can try out the use of the device live and getanswers about how the service works.
