iMACHINE CLASSIC Product Family
Five applications in one device

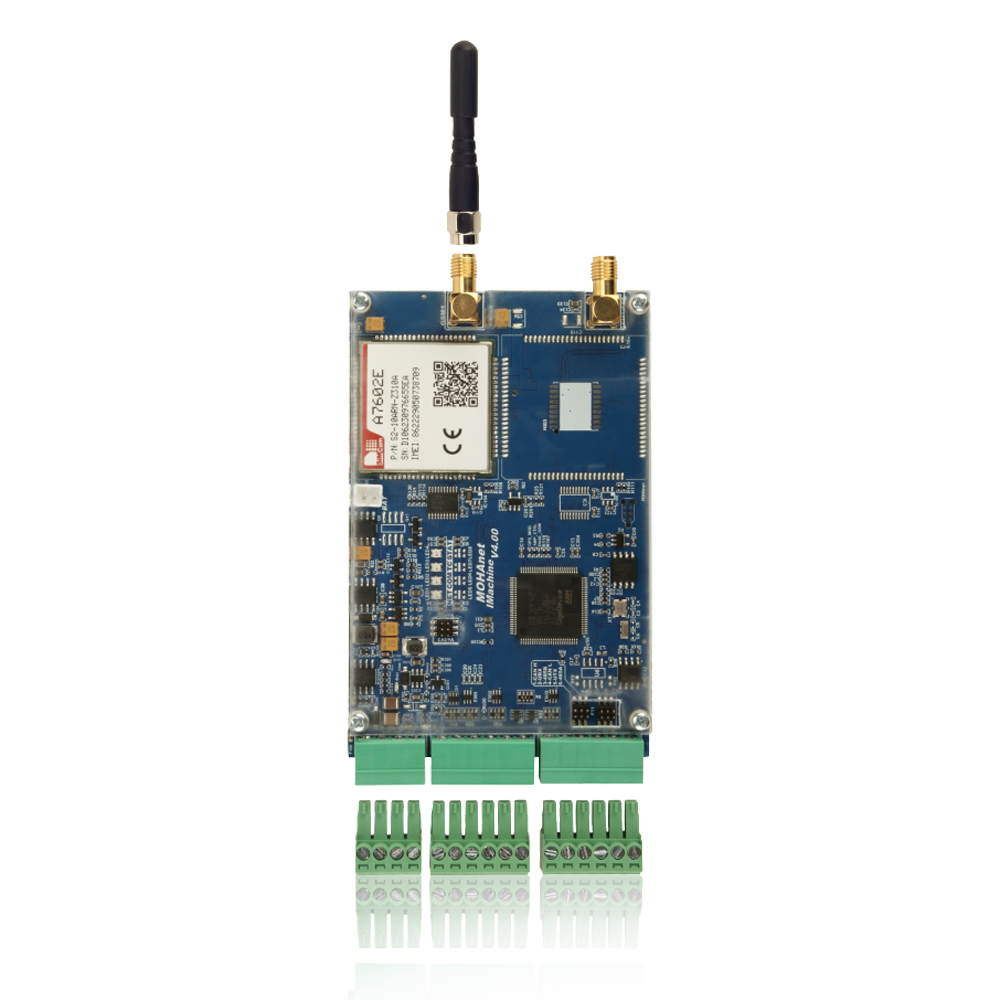

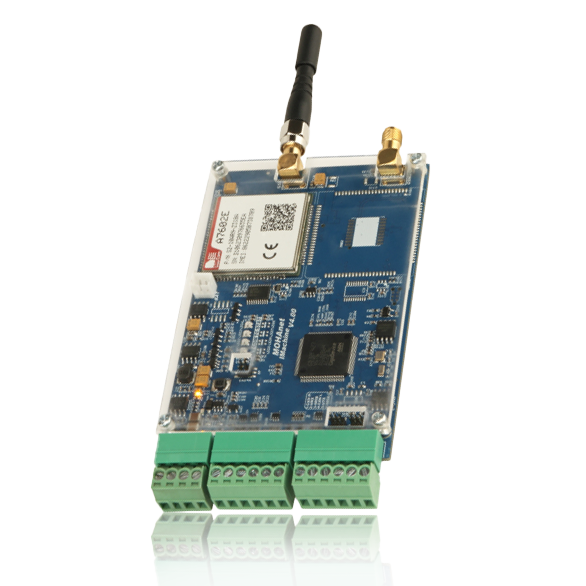

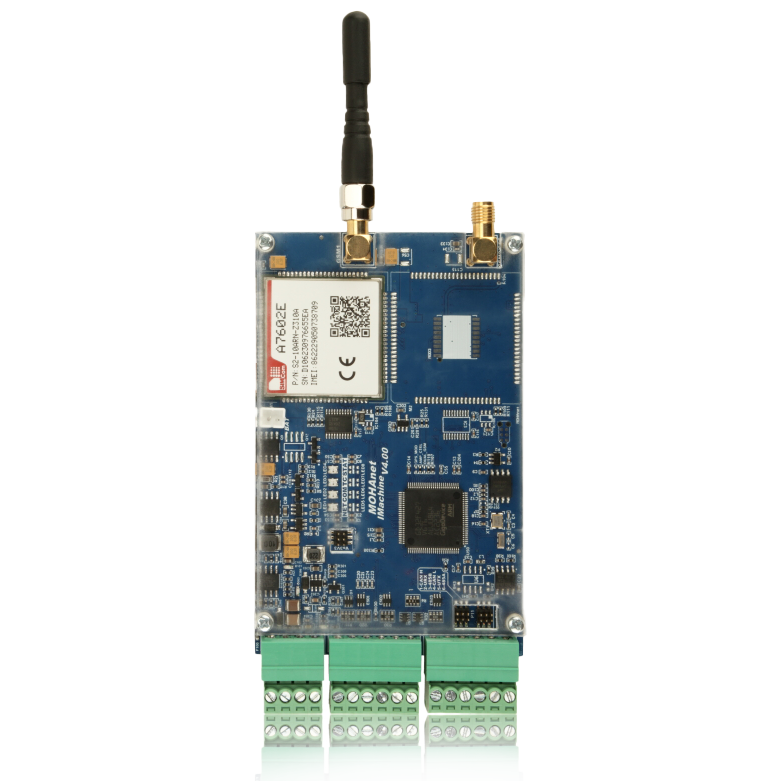

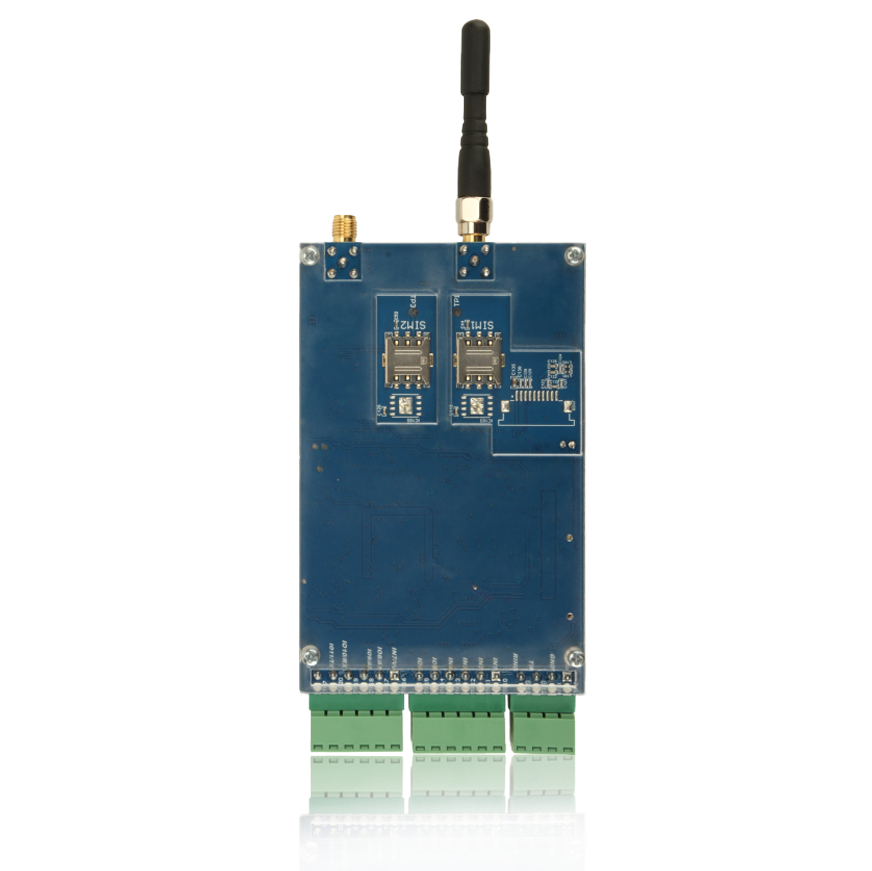

The iMACHINE CLASSIC family supports five device configurations. All devices in the family are built with the same printed circuit board, but they differ based on the type and number of components installed, as well as the embedded software running on each device.ALARM
Alarm Transmitter
This device is developed to transmit signals/event notifications from traditional alarm
systems with standard Contact ID-compatible telephone line interface. Besides this
functionality the remote control of alarm systems can also be realized by connecting
the alarm system control panel and the Instant Alarm device. The alarm control panel
must have a free zone input for that functionality that serves as a key switch, allowing the user to arm or disarm the assigned partition remotely via the MONITORINBOOK HOME mobile application.

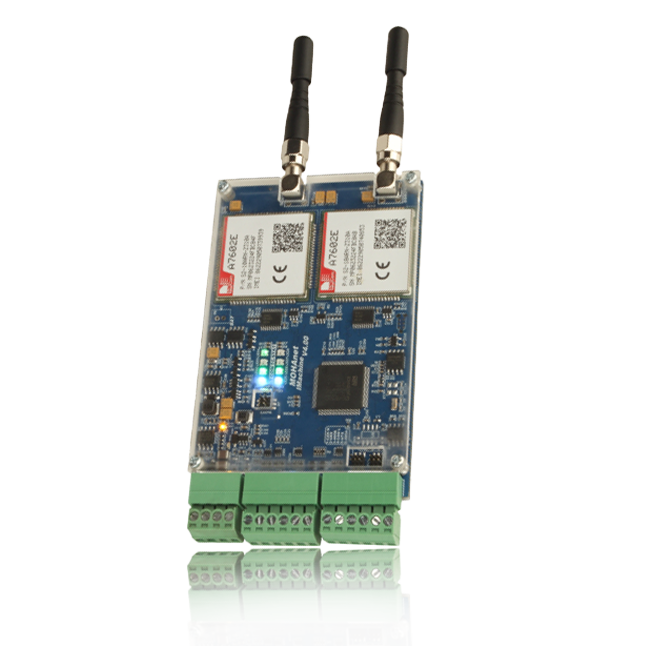

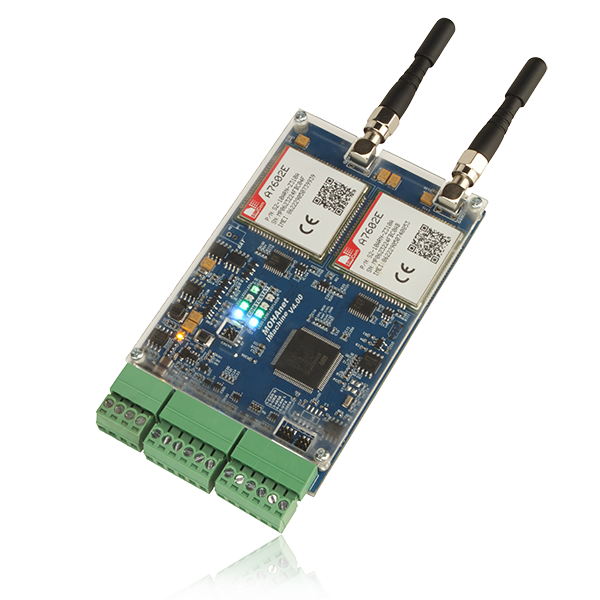

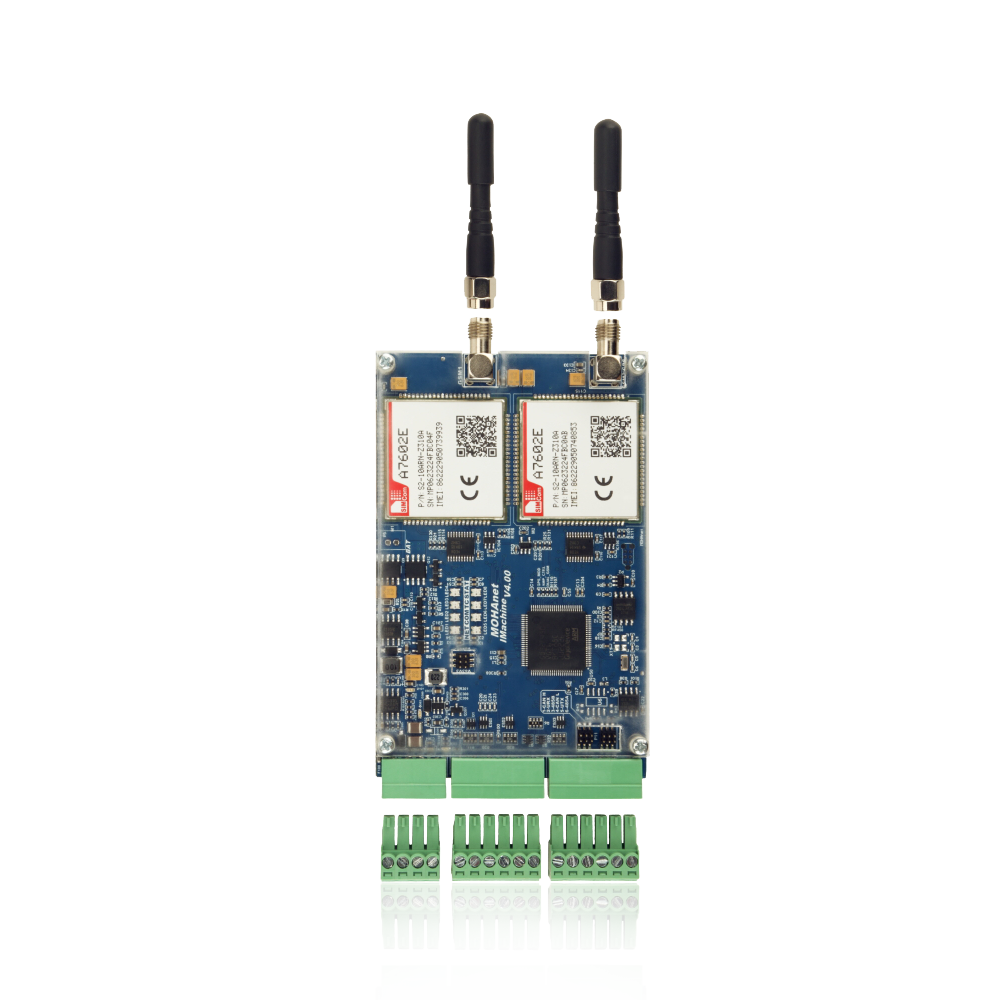

FIRESIGNAL
Fire Transmitter
This device is developed for the special case of handling fire alarm signals from fire
alarm panels. When signals are managed collectively, fire alarms and fault reports may
need to be distinguished sending the former to dedicated autority. The latter is always
to be sent to remote monitoring service provider, in compliance with applied
regulations.

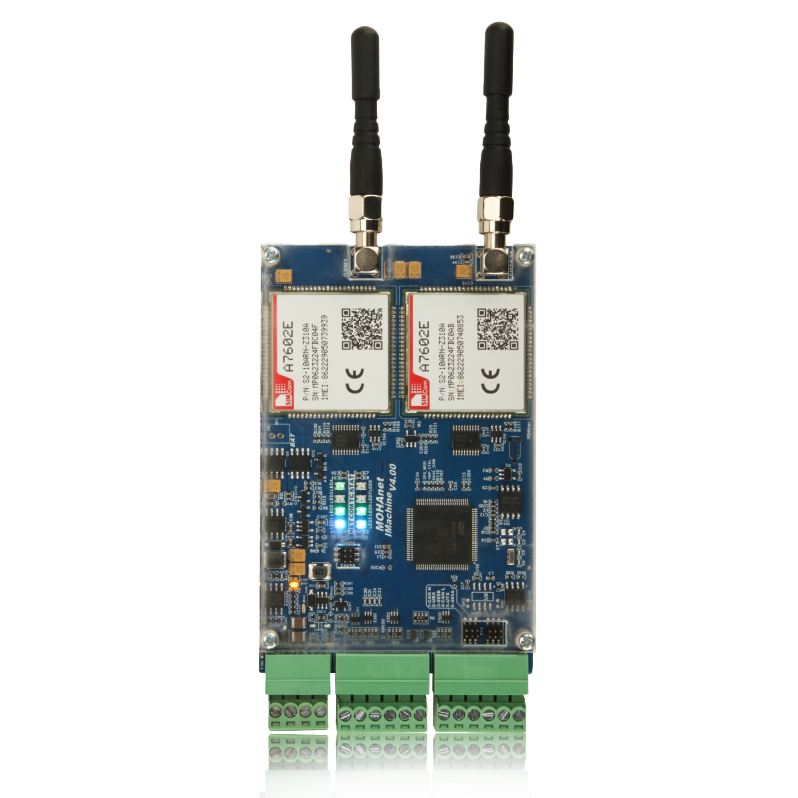

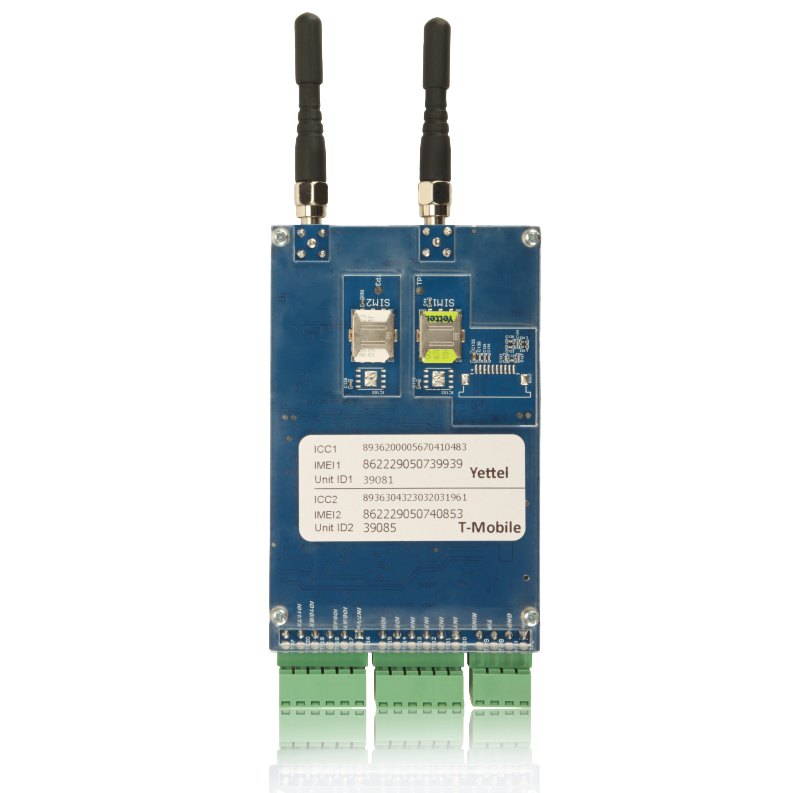

Reliable data communication is guaranteed by a redundant GSM channel. The FIRESIGNAL is equipped with two GSM modems operating in parallel, provided by two different mobile operators.

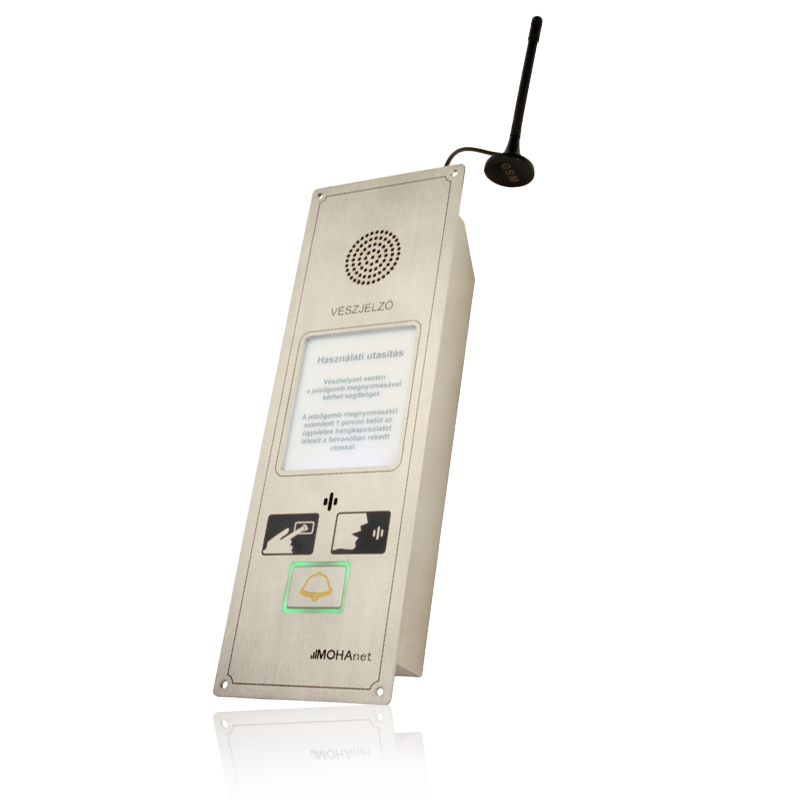

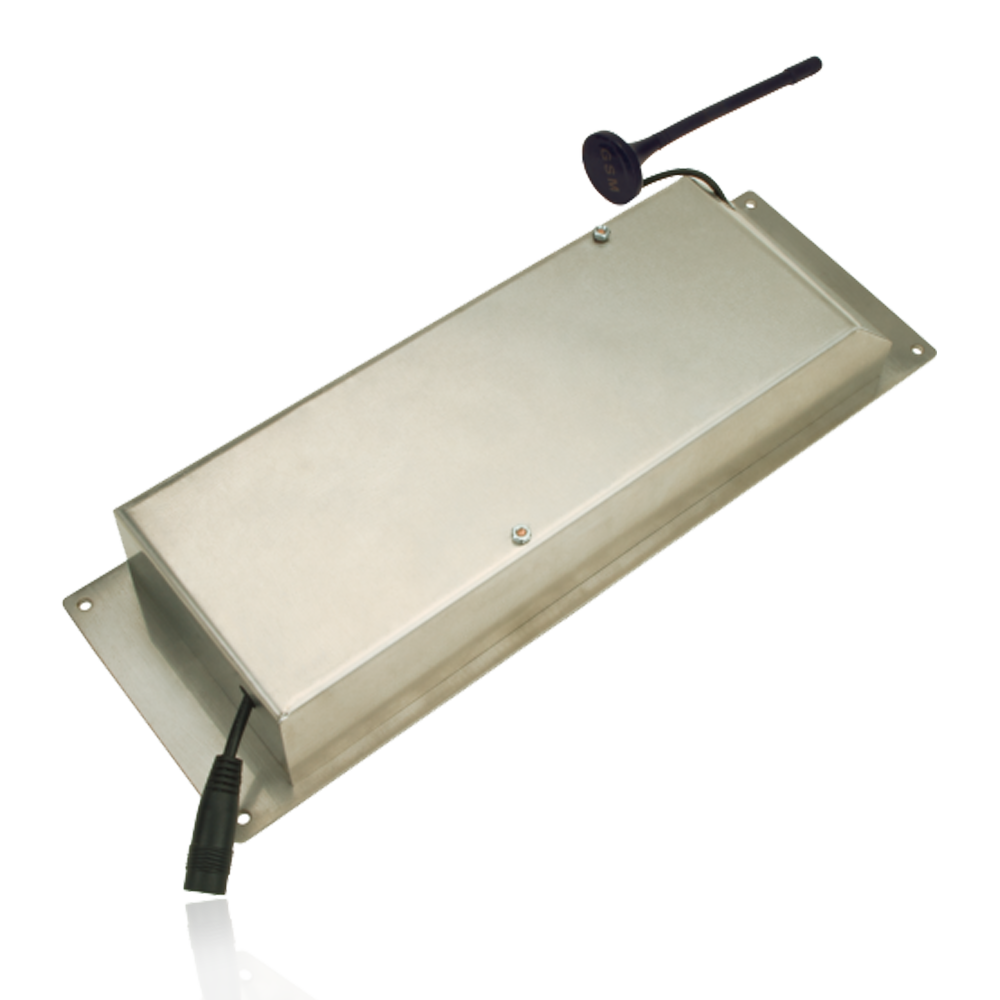

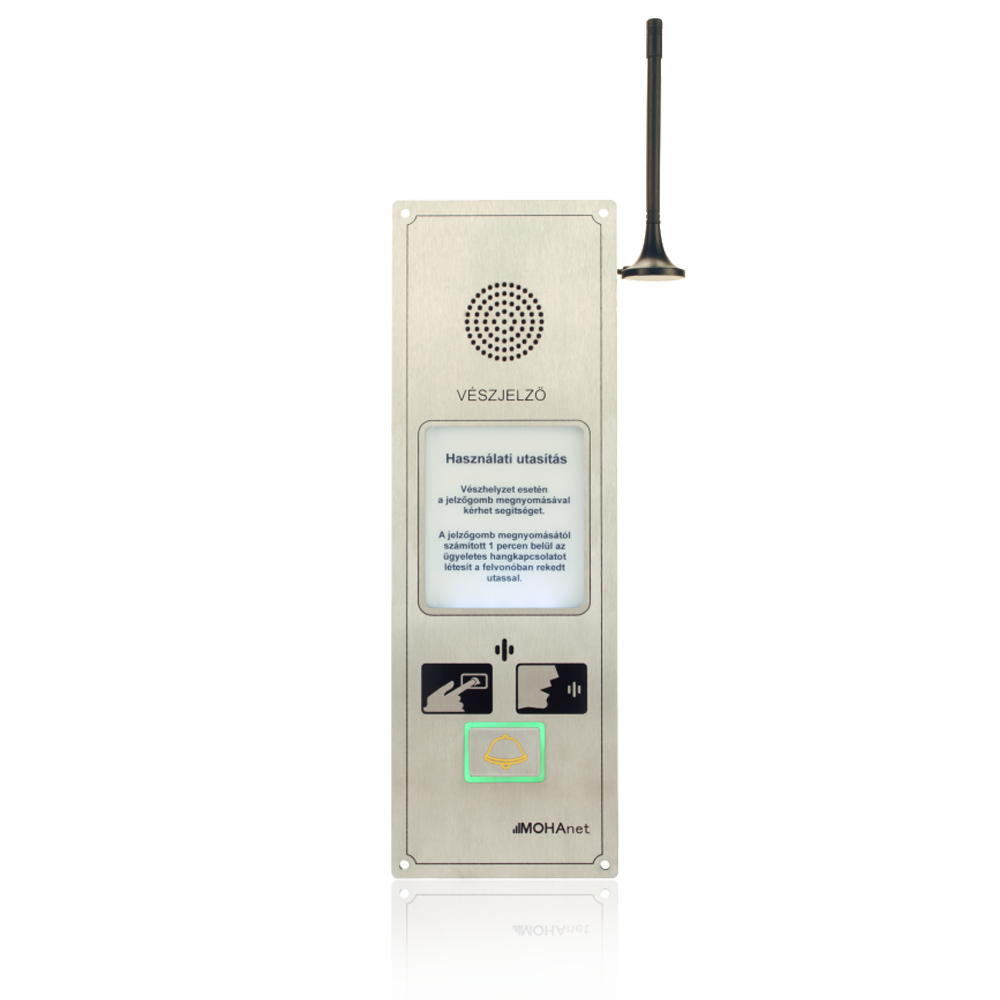

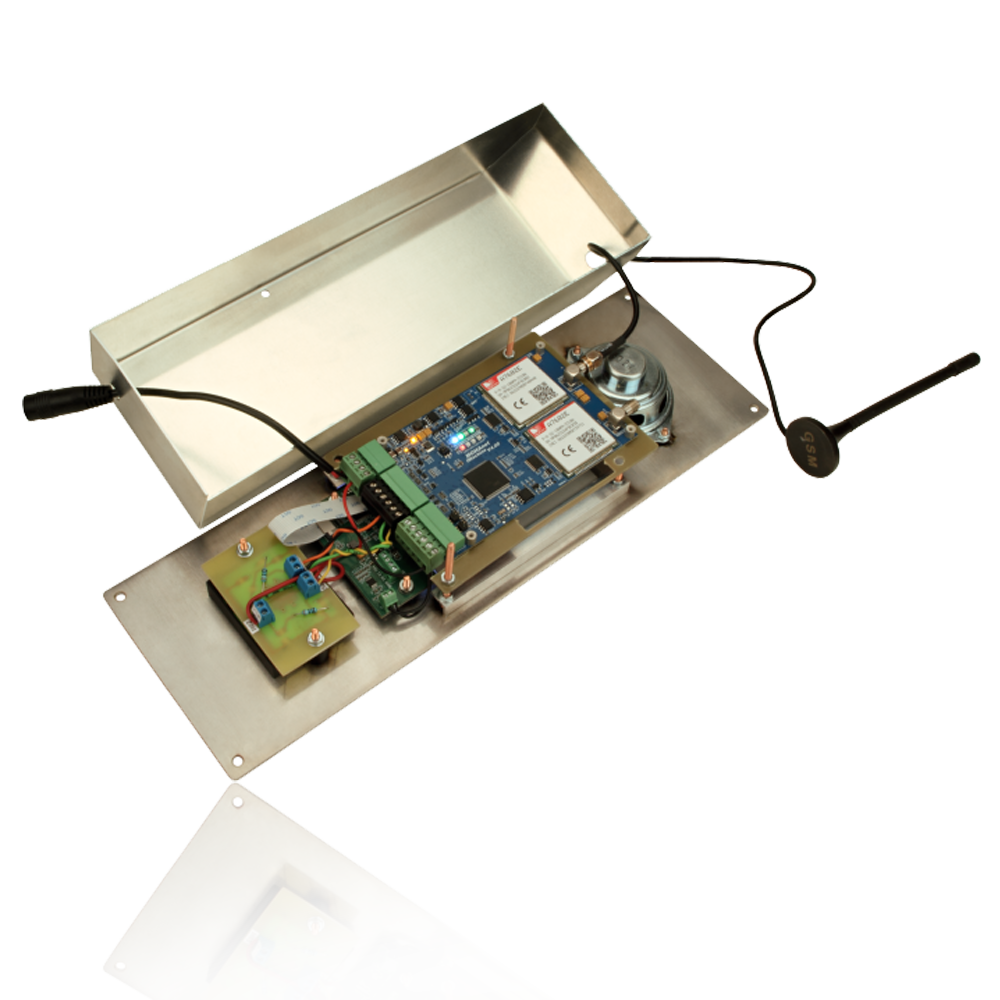

ELEVATOR
Elevator Emergency Transmitter
Send real-time transmission of emergency and status signals for any passenger or
freight elevators and provide a two-way voice communication. In accordance with
standard requirements, the emergency button has a dual functionality, regulated by the
elevator's technical condition.
If the elevator is in the door zone and the door can be opened, pressing the button sends a fault report to the remote monitoring system. If the elevator is not in the door zone and the door cannot be opened, pressing the button sends an emergency signal and disables the elevator. The system can only be reset by a technician or rescue personnel after an on-site visit. The device complies with the current MSZ EN 81-28+AC:2019 standard requirements.

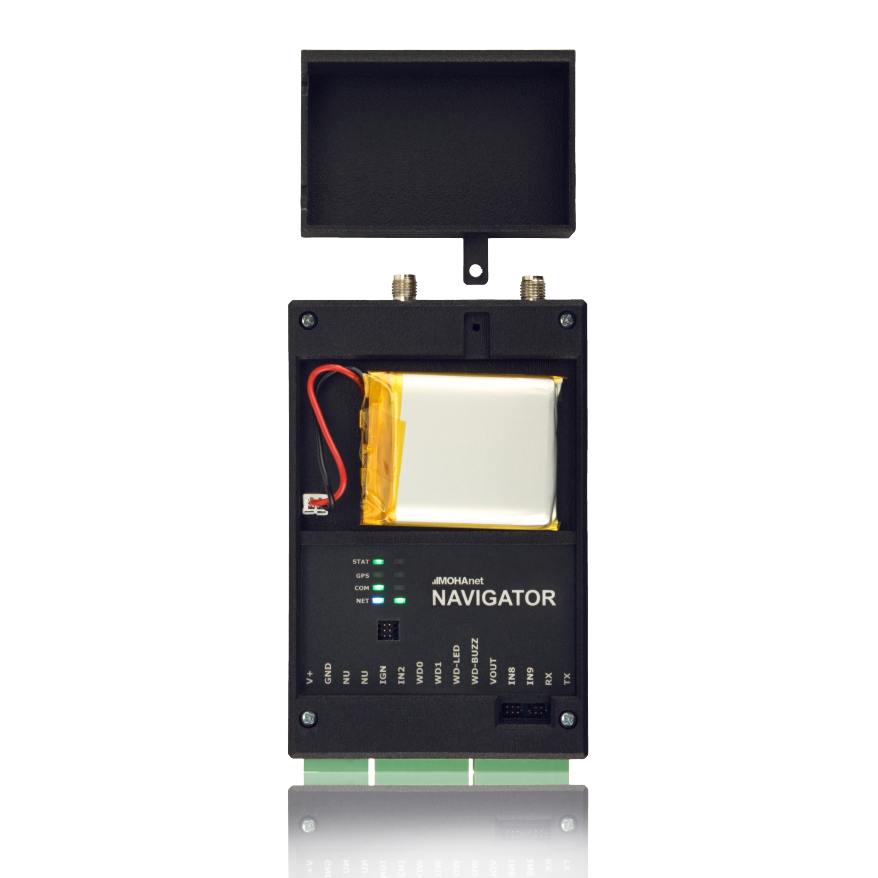

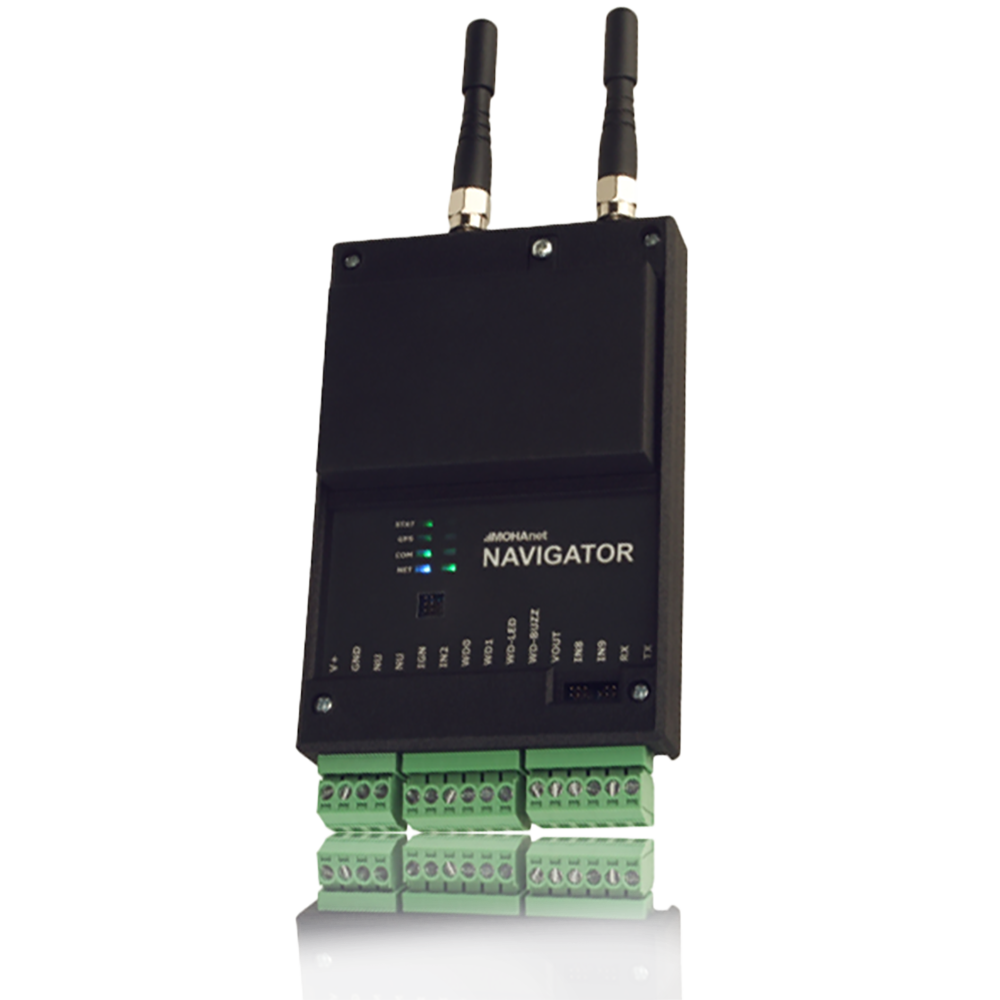

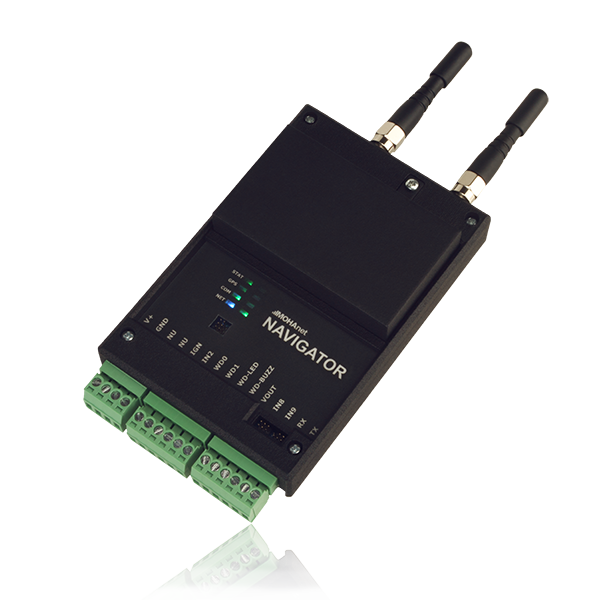

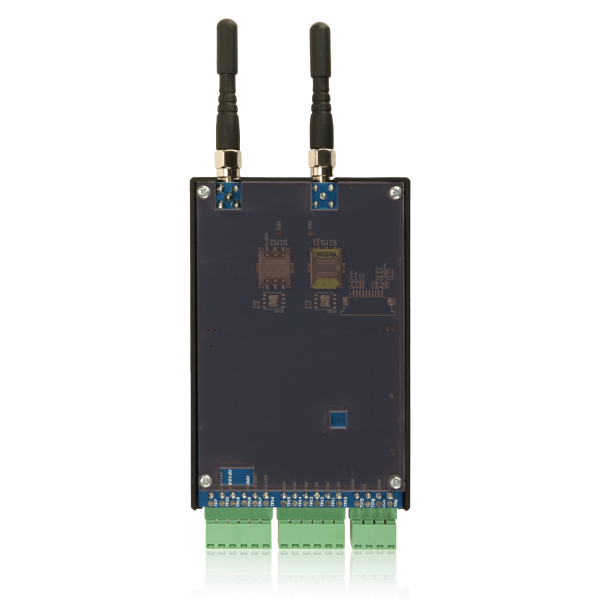

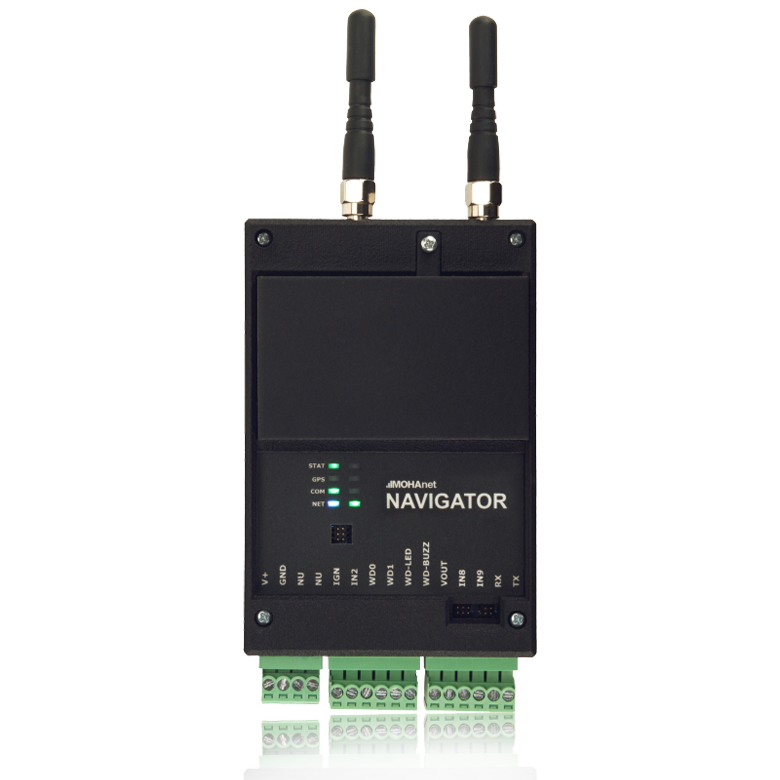

NAVIGATOR
Vehicle Tracking
Real-time tracking of the movements and technical status signals of both passenger
and commercial vehicles. Vehicle positioning is supported by the device's satellite
navigation (GPS) system, while status information is provided directly by the vehicle's
electronics or external sensors connected to the device. Sensor integration can be
done via wired connections on the device or wirelessly using a Bluetooth module. The
device can forward a wire range of vehicle operation data, such as the number and
timing of door openings and tilts, temperature changes in refrigerated vehicles, driver
identification, differentiation between private and business trips, and even fuel
consumption.
Technical Specifications
| Technical characteristics | ALARM | FIRESIGNAL | IOT | ELEVATOR | NAVIGATOR |
|---|---|---|---|---|---|
| Supply voltage | 12-28 V DC | ||||
| Current consumption | Quiescent: 50mA (12V DC) Maximum: 250mA (12V DC) |
||||
| Frequency band | 900/1800 MHz | ||||
| Size | 120x85x27mm | ||||
| Operating temperature | from -20 to +50 °C | ||||
| Storage temperature | from -30 to +85 °C | ||||
| Event memory | 1024 messages with time stamp | ||||
| Operating status display | 4 RGB LEDs | 2x4 RGB LEDs | 4 RGB LEDs | ||
| GSM Communication | LTE (4G) | ||||
| Number of GSM modems | 1 | 2 | 1 | - | 1 |
| GPS | - | - | - | - | yes |
| Total number of inputs and outputs | 10 | - | - | ||
| Contact ID interface | 1 | - | - | ||
| General purpose input | 4 | - | - | ||
| General purpose programmable input and OC output | 4 | - | - | ||
| General purpose programmable input and output (RS-232TTL, optionally RS485 or CAN) or Open Collector | 1 | - | - | ||
| Voice communication | - | - | yes | - | - |
| Microphone performance | - | - | 2.2 Ohms condenser microphone (Sanyo TF-202) | - | - |
| Speaker performance | - | - | 8 Ohms/2W | - | - |
| Basic accessory | Antenna with magnetic base | - | Display High gain antenna | - | Dual Antenna (GSM/GPS) |
| Sign of life | A parameter that can be modified between 1 minute and 1 hour | - | - | ||
| Battery | - | - | optional | ||
| Other setting (Jumper) | Battery supply voltage RS485, CAN, UART | - | - | ||
| Guarantee | 2 years | ||||
